特性
用于时序控制的时间继电器,备有板前,板后的连接插座LED在线指示灯,显示工作状态

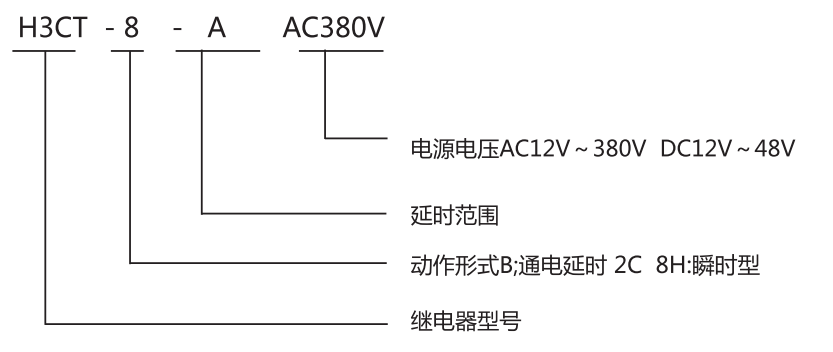

订货标记示例
性能参数
电源电压 | AC/DC12~48V,AC12V~380V 50HZ/60HZ |
环境温度 | -10℃~50℃ |
功耗 | DC1.0W,AC1.0VA |
控制输出 | 5A220VAC |
绝缘电阻 | DC500V,100MΩ |
介质耐压 | BCC1500VAC,BOC1000VAC |
湿度 | 35%~85% |
寿命 |
机械寿命:106,电气寿命:105 |
重量 | ≈160g |
时间范围
H3CT-8/8H-A | 0.5S,5S,0.5M,5M |
H3CT-8/8H-B | 1S,10S,1M,10M |
H3CT-8/8H-C | 3S,30S,3M,30M 6S,60S,6M,60M |
H3CT-8/8H-D | 1M,10M,1H,10H |
H3CT-8/8H-E | 3M,30M,3H,30H |

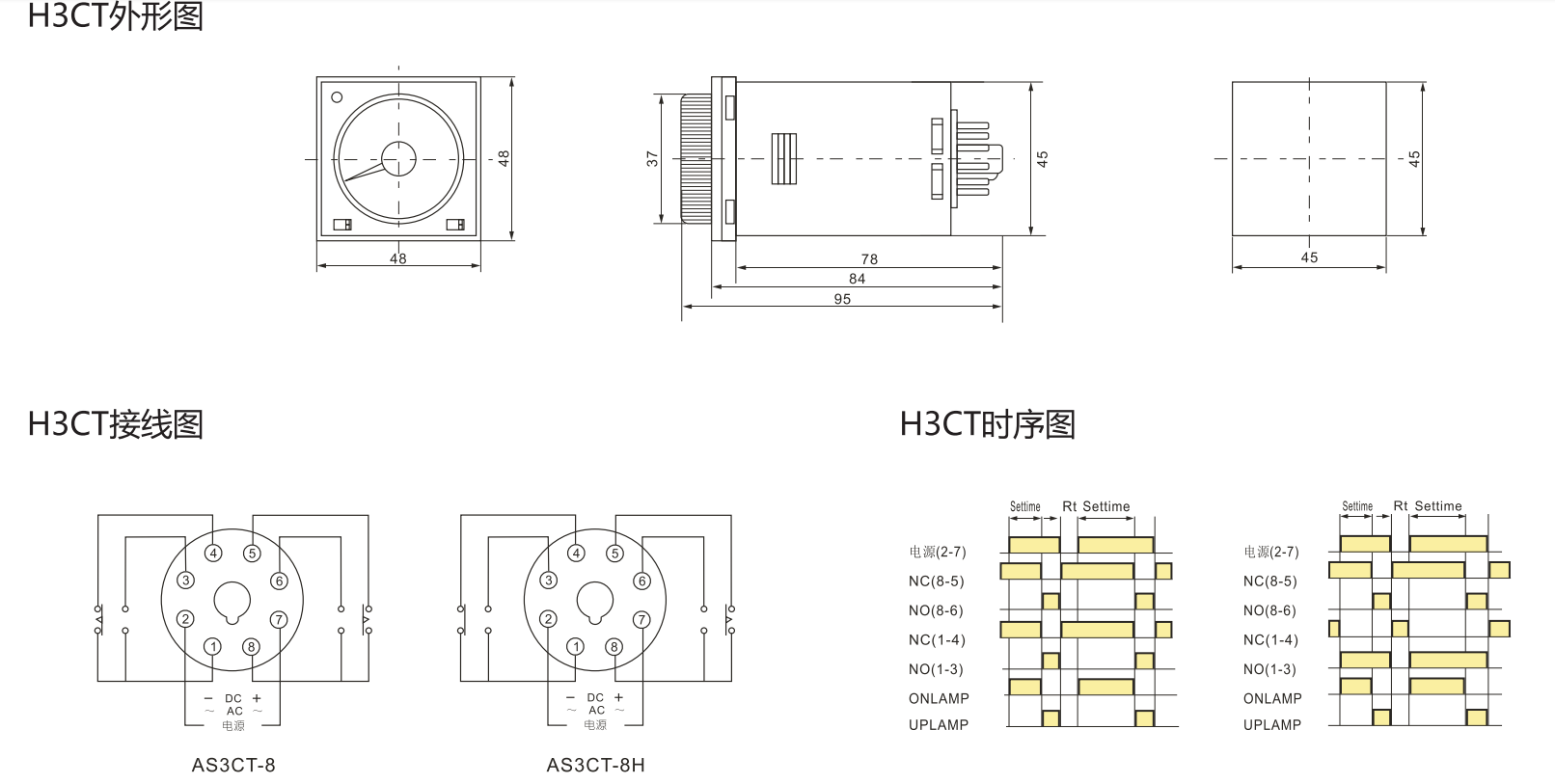

外形图、接线图、安装尺寸
